Dana 70HD or Dana 80 Spring Perches
Dana 70HD or Dana 80 Spring Perches
Heavy-Duty Spring Perches for 4.0" Axle Tubes

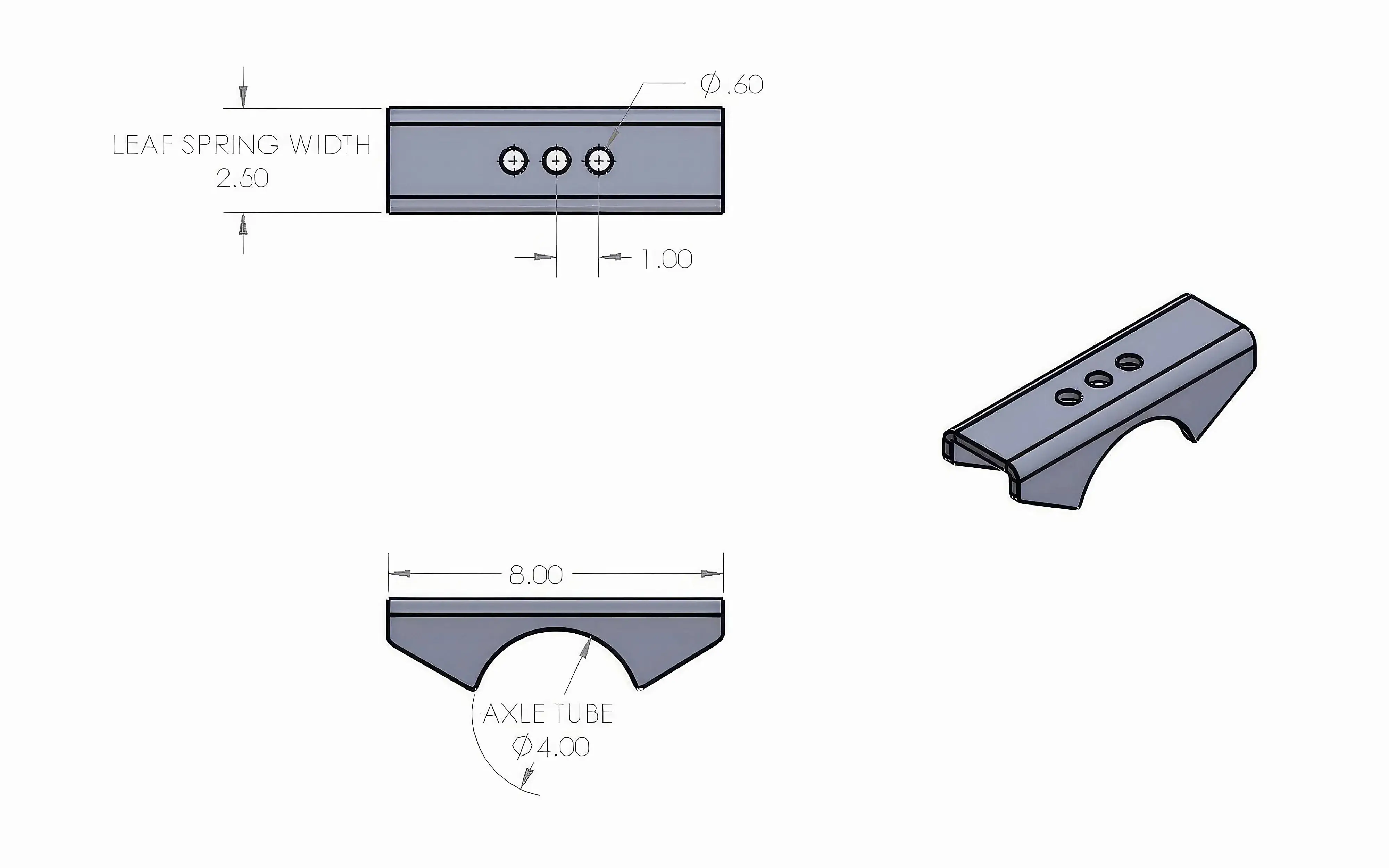

These spring perches are made for Dana 70HD and Dana 80 axles with 4.0" axle tubes. They're laser cut and brake-formed from 1/4" HR P&O steel, offering a precise fit and the strength needed for heavy-duty off-road use.
Each perch measures 7.75" long to help reduce axle wrap and provides a 2.5" wide spring surface. The three-hole design allows for minor wheelbase adjustments, and they can be modified to fit axle tubes ranging from 3.75" to 4.25".
Key Features
- Part Number: R1116
- Fits Dana 70HD or Dana 80 axles with 4.0" axle tubes
- Made from 1/4" HR P&O steel plate
- 7.75" long to reduce axle wrap
- 2.5" wide spring platform
- Three spring pin mounting holes for wheelbase adjustment
- Sold in pairs
Installation Notes
- Intended for spring-over-axle applications
- Can be adjusted to fit axle tubes from 3.75" to 4.25"
- Welding required
Original: $38.45
-70%$38.45
$11.54More Images
Dana 70HD or Dana 80 Spring Perches
Dana 70HD or Dana 80 Spring Perches
Heavy-Duty Spring Perches for 4.0" Axle Tubes
These spring perches are made for Dana 70HD and Dana 80 axles with 4.0" axle tubes. They're laser cut and brake-formed from 1/4" HR P&O steel, offering a precise fit and the strength needed for heavy-duty off-road use.
Each perch measures 7.75" long to help reduce axle wrap and provides a 2.5" wide spring surface. The three-hole design allows for minor wheelbase adjustments, and they can be modified to fit axle tubes ranging from 3.75" to 4.25".
Key Features
- Part Number: R1116
- Fits Dana 70HD or Dana 80 axles with 4.0" axle tubes
- Made from 1/4" HR P&O steel plate
- 7.75" long to reduce axle wrap
- 2.5" wide spring platform
- Three spring pin mounting holes for wheelbase adjustment
- Sold in pairs
Installation Notes
- Intended for spring-over-axle applications
- Can be adjusted to fit axle tubes from 3.75" to 4.25"
- Welding required
