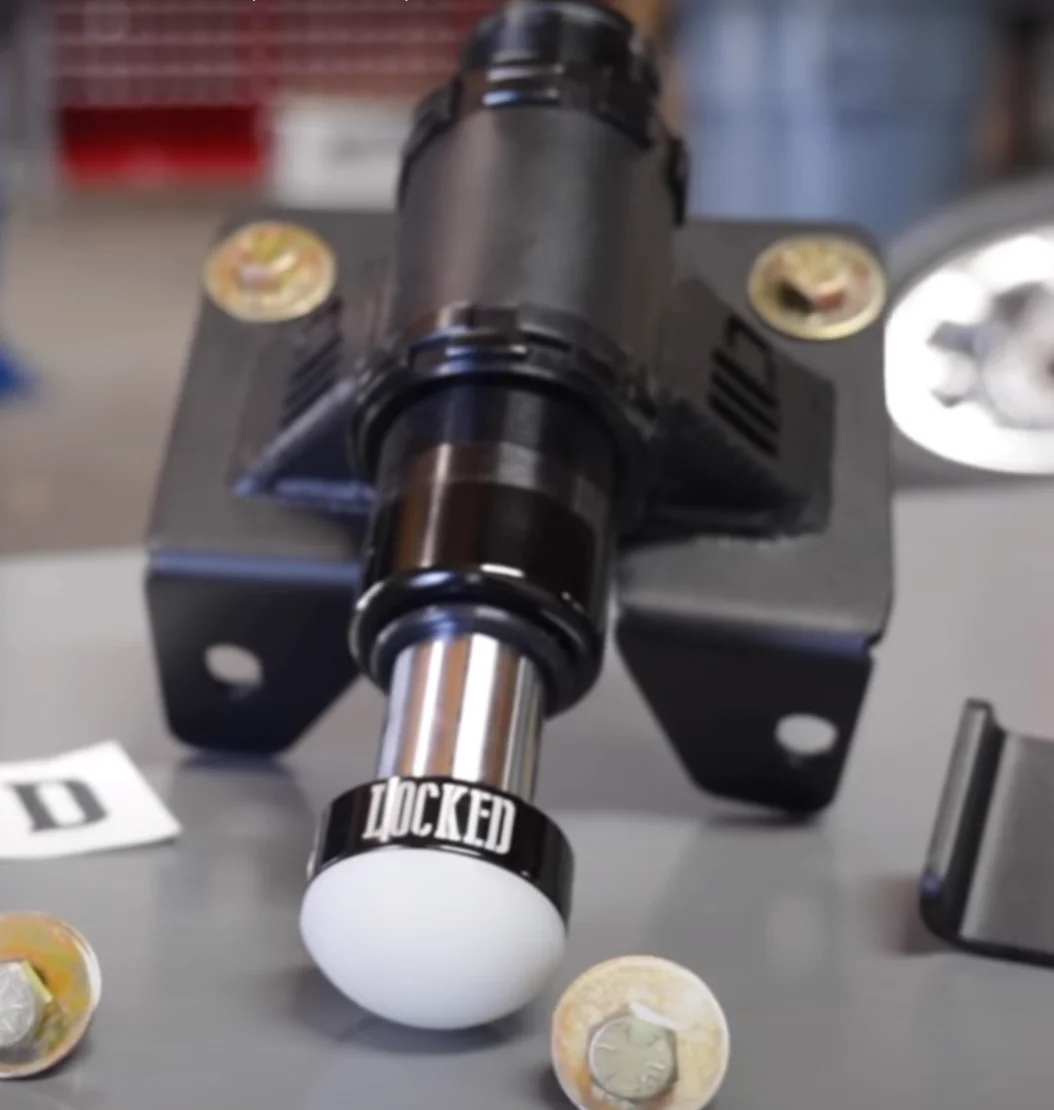

Locked Offroad's best-selling 2.0" x 2.0" bump stops, teamed up with bolt-on mounts for 2nd and 3rd Generation Tacoma rear ends. Don't worry about welding onto your frame, bolt 'em in and call it a day.

Locked Bump Stops are designed to handle anything you can throw at them. They are built out of some of the highest quality materials to ensure a long shock life and reduce environmental wear.

Built using Buna seals, 4130 Chromed polished shafts, Black Zinc coated steel shock bodies, 6061 Machined Aluminum coated in a deep black anodizing.

Locked Offroad stands behind their products 100% and offers a one year warranty on non wearable parts and a 6 month warranty on wearable parts.

Intended for off-highway use. Average build time 5-6wks.

WHAT YOU GET:

2 BOLT-ON BRACKETS

2 LEAF SPRING STRIKE PLATES

ALL REQUIRED MOUNTING HARDWARE

PAIR OF 2.0 BUMP STOPS with 2" and 4" travel options

Adjustable by 2"
Hydraulic bump stops
Fully re-buildable
Adjustable oil volume and nitrogen pressure
2 sets of locking rings per bump stop

TECHNICAL SPECS:

2.0” diameter body
2.0" or 4.0" stroke length
Large 1.26” diameter shafts are hard-chromed, preventing rusting and essentially creating a self-cleaning system.
Shafts are polished to a mirror-like finish, ensuring extended seal life.
Shraeder cap mounts directly to the body of the bump stop, not the valve, creating a stronger seal, keeping everything clean and dry by keeping out dirt and moisture.
O-ring on shaft gauges your travel
Delrin contact pad is mounted with a single flushmount design, protecting your suspension and insuring quiet operation, with no metal on metal contact.
